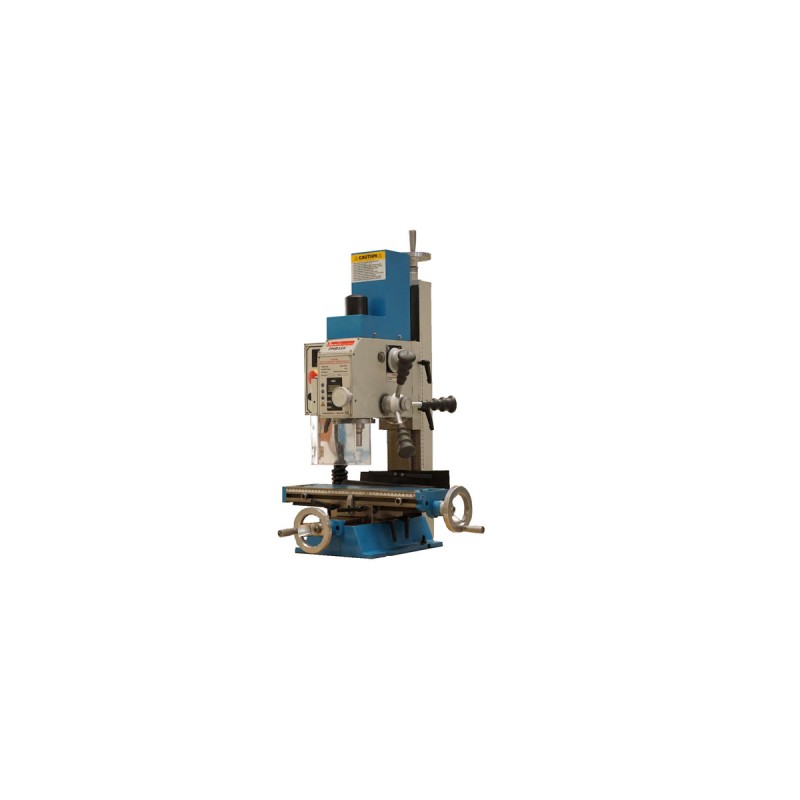

Mill PMB 16 V View larger

Mill PMB 16 V

PMB-16 V

New product

Mill for Professional Metal Machining

More details

Data sheet

Drilling capacity 16 mm
End milling capacity 16 mm
Face milling capacity 50 mm
longitudinal axis (X) 220 mm
Cross axis (Y) 180 mm
head stock travel 188 mm
Spindle taper MT2
Throat 140 mm
Max. distance spindle to table 210 mm
Table effective size 400 x 1120 mm
T-slot size 12x3 mm
Head tilt 90 degree L / 90 degree R
Motor output power 750 W / 220 V / 50~60 Hz
Spindle speed low range / high range 100 ~1000 rpm 10% / 100~ 2000 rpm 10%
Overall dimension (LxWxH) 750x450x500 mm
Packing size (LxWxH) 480x400x630 mm
Weight (net /gross) 60 / 70 kg

More info

  • PMB 16 V Mill Machine
  • • Z axis Digital ruler
  • • Spindle Digital Read out
  • • 750 Watt Brushless Motor
  • • variable spindle speed
  • • Cast iron construction
  • • Coarse feed for drilling, fine for milling
  • • Column tilts up to 45° for angled machining
  • • Two electronically variable control spindle speed ranges
  • • Two function machine - vertical mill or small pillar drill
  • • Supplied with 16 mm chuck, drawbar and service tools
