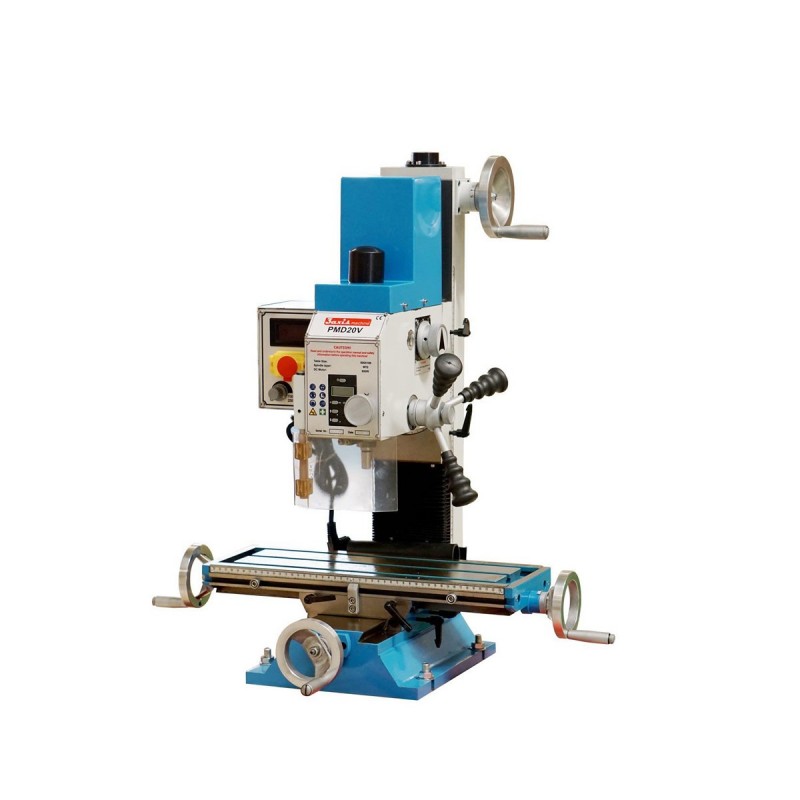

Mill  PM 20 View larger

Mill PM 20

PM-20

New product

Mill for Professnal Metal Machining

More details

Data sheet

Drilling capacity 20 mm
End milling capacity 20 mm
Face milling capacity 63 mm
longitudinal axis (X) 425 mm
Cross axis (Y) 175 mm
head stock travel 380 mm
Spindle taper MT2
Throat 140 mm
Max. distance spindle to table 380 mm
Table effective size 500 x 180 mm
T-slot size 12x3 mm
Head tilt 90 degree L / 90 degree R
Motor output power 600 W / 220 V / 50~60 Hz
Spindle speed low range / high range 100 ~1000 rpm 10% / 100~ 2000 rpm 10%
Overall dimension (LxWxH) 670x550x860 mm
Packing size (LxWxH) 670x550x860 mm
Weight (net /gross) 103 / 116 kg

More info

  • PM 20 V Mill Machine
  • • Cast iron construction
  • • Coarse feed for drilling, fine for milling
  • • Column tilts up to 45° for angled machining
  • • Two electronically variable control spindle speed ranges
  • • Two function machine - vertical mill or small pillar drill
  • • Supplied with 20 mm chuck, drawbar and service tools
