Mini Mill V 75 S View larger

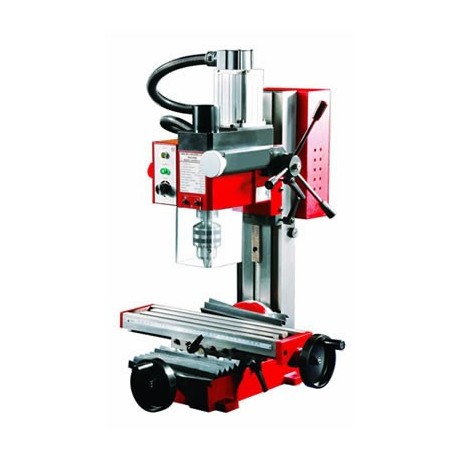

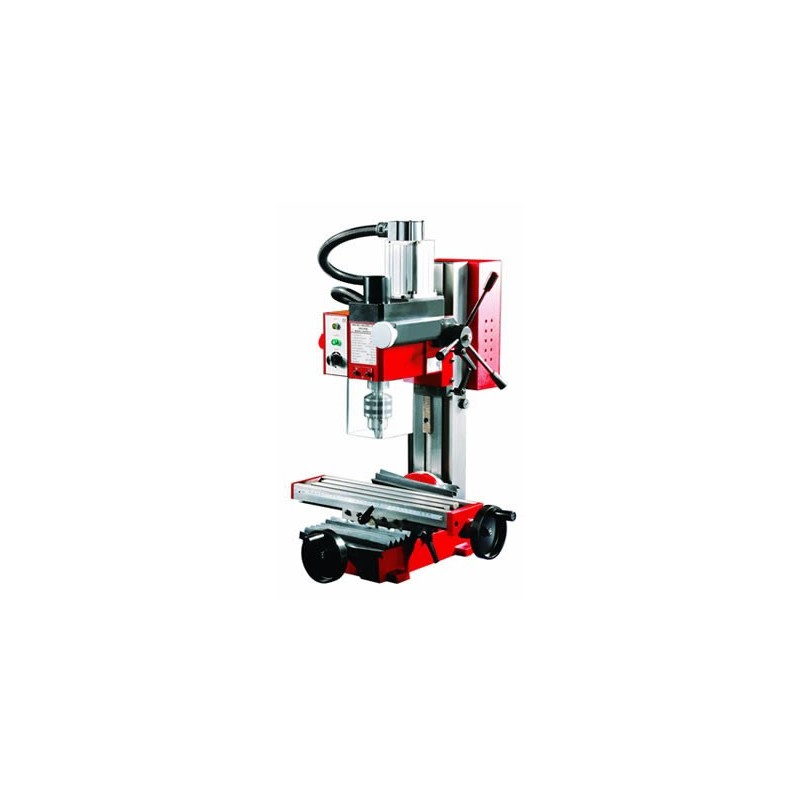

Mill Machine V 76 S

V-76-S

New product

Mill machine for Professnal Metal Worker

More details

Data sheet

Drilling capacity 16 mm
End milling capacity 13 mm
Face milling capacity 30 mm
longitudinal axis (X) 220 mm
Cross axis (Y) 100 mm
head stock travel 180 mm
Spindle taper MT3 or R8
Throat 167 mm
Table effective size 390x92 mm
T-slot size 12 mm
Head tilt 45 degree R / 45 degree L
Motor output power 500 W / 220 V / 50~60 Hz
Spindle speed low range / high range 100 ~ 2500 RPM
Overall dimension (LxWxH) 520x500x700 mm
Packing size (LxWxH) 540x540x730 mm
Weight (net /gross) 50 / 68 mm

More info

  • V 76 S Mini Mill Drill
  • • Cast iron for vibration free running
  • • Column tilts to 45° Left & Right
  • • 500W high torque DC brushless motor
  • • Coarse down feed for drilling operations
  • • Hardened slide ways with gib strip adjustment
  • • Precision ground table with Tee slots for material clamping
